Soxhlet Apparatus
The Soxhlet apparatus is a laboratory device used for the continuous extraction of compounds from solid materials using a solvent. It consists of a condenser, extraction chamber, and boiling flask, allowing the solvent to repeatedly dissolve the desired substance and return it for further extraction. Made from borosilicate glass, it is widely used in food, pharmaceutical, and chemical research.
Specifications
- Material: Made from borosilicate glass for high thermal and chemical resistance.
- Components: Includes a boiling flask, extraction chamber, and condenser for efficient extraction.
- Capacity: Available in different sizes, typically ranging from 50 ml to 5000 ml.
- Applications: Used for fat analysis, bioactive compound extraction, and other chemical extractions.

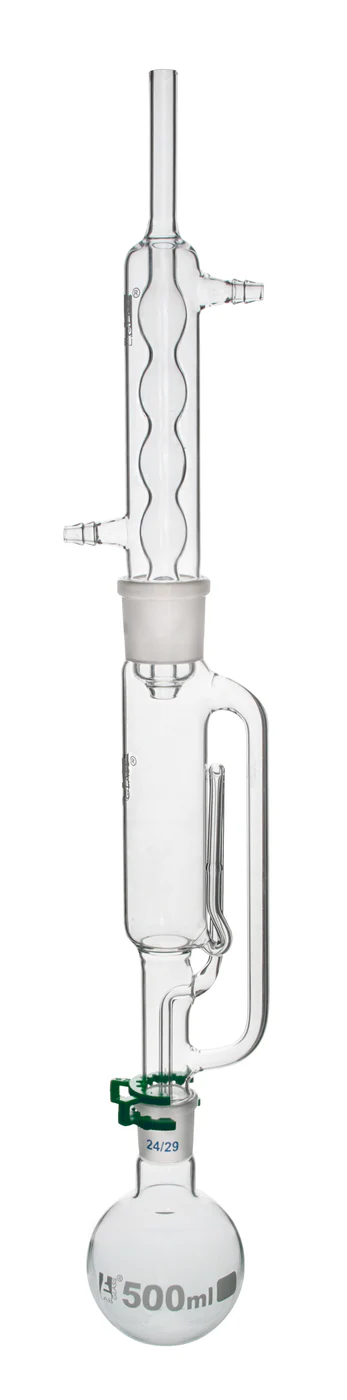

Soxhlet Apparatus (Set)
| Extractor Size | Extractor Socket | Cone Size | Flask Size (Flat Bottom) |
|---|---|---|---|
| 200 ml | 45/40 | 29/32 | 500 ml | 400 ml | 50/42 | 24/29 | 1000 ml |
| 500 ml | 60/46 | 29/32 | 1000 ml |
| 600 ml | 50/42 | 24/29 | 2000 ml |

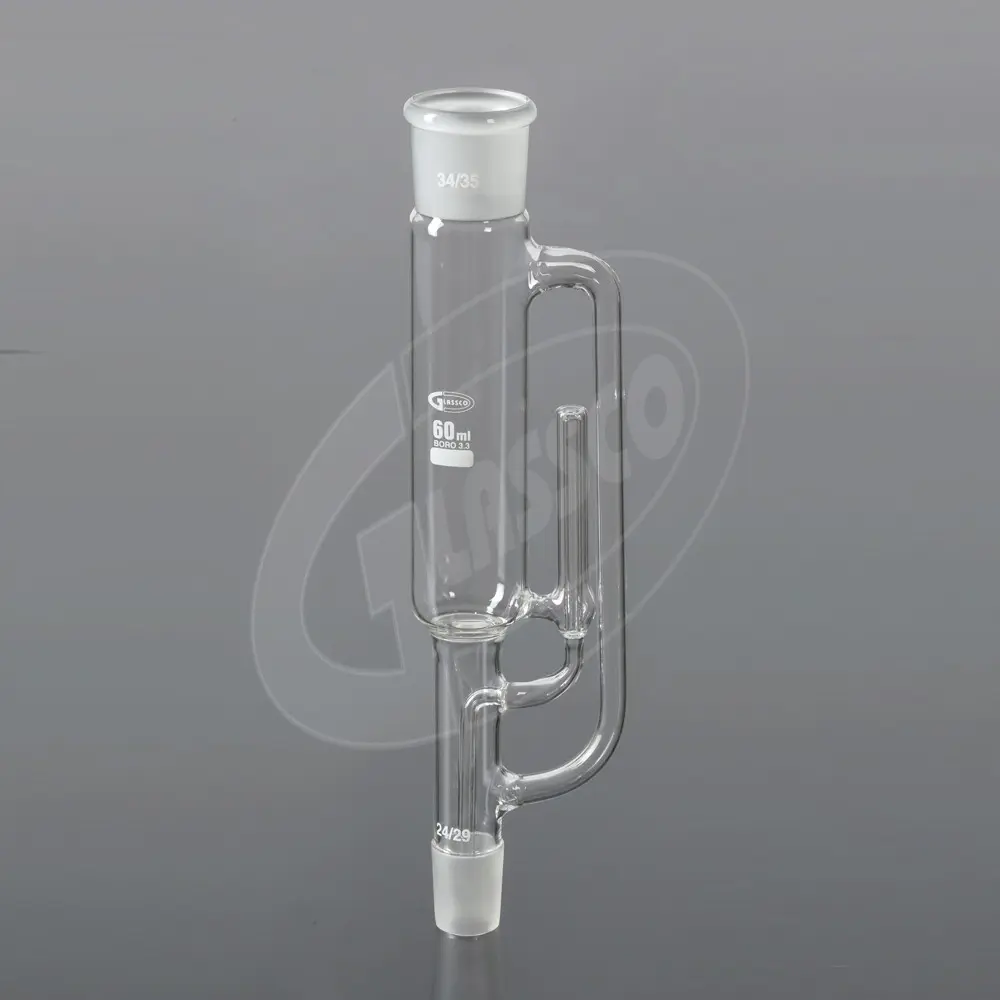

Soxhlet Extractor
| Product Code | Socket Size | Cone Size | Size |
|---|---|---|---|
| 211.202.06 | 45/50 | 29/32 | 250 ml |
Soxhlet Condensor
| Cone Size | Size |
|---|---|
| 34/35 | 100 ml |

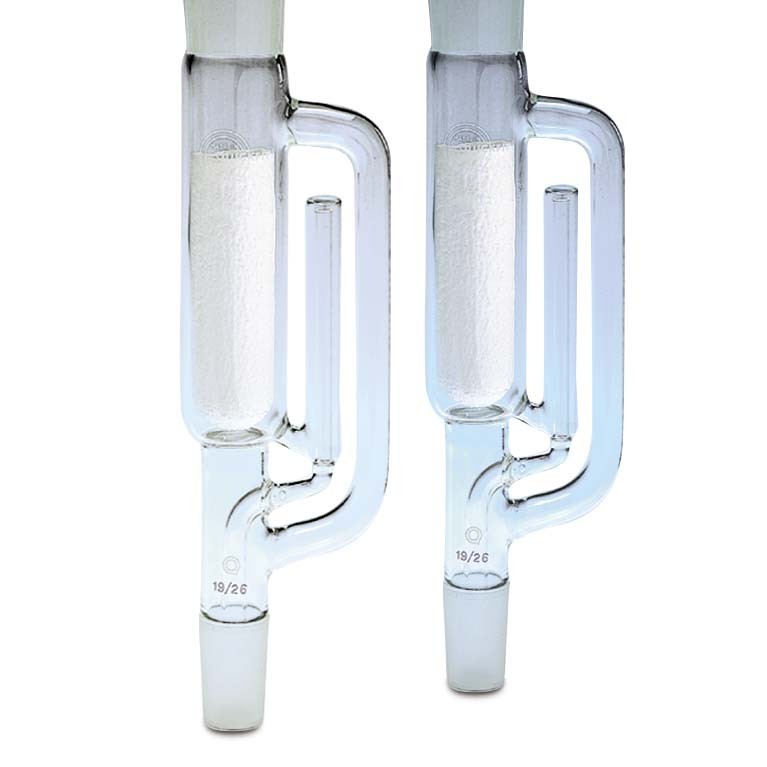

Glass Thimble
| Product Code | Size(O.D x Length) | Disc Diameter | Porosity | Box Packing |
|---|---|---|---|---|
| 027.203.01 | 26 x 95 mm | 20 mm | 1 | 02 Pcs |

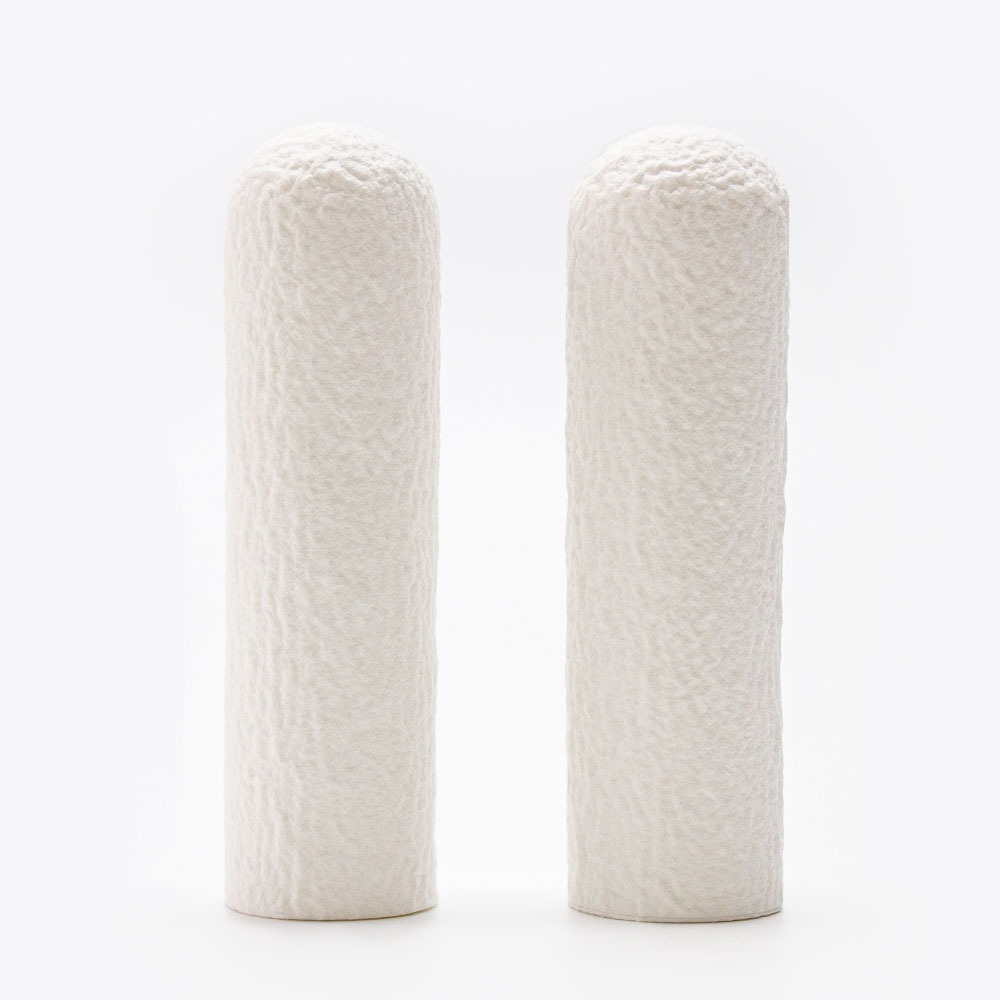

Extraction Thimbles
| Product Code | Diameter | Height (mm) | Box Packing |
|---|---|---|---|
| ET-1 | 28 | 100 | 25 pcs |
| ET-2 | 30 | 100 | 25 pcs |
