Sintered Funnels

Buchner funnels and glass funnels with sintered discs are essential laboratory filtration devices designed for efficient solid-liquid separation. These funnels feature porous glass filters that allow for vacuum-assisted filtration, making them ideal for collecting precipitates, clarifying solutions, and performing quantitative analyses in chemical and biological laboratories.

Specifications

Multiple Porosities: Available in various pore sizes for different filtration needs
Chemical Resistance: Made from borosilicate glass for durability
Thermal Stability: Can withstand temperature variations during filtration
Variety of Sizes: Range from small 35ml to large 500ml capacities
Specialized Designs: Available with cones, vacuum connections, and stems

Inquire

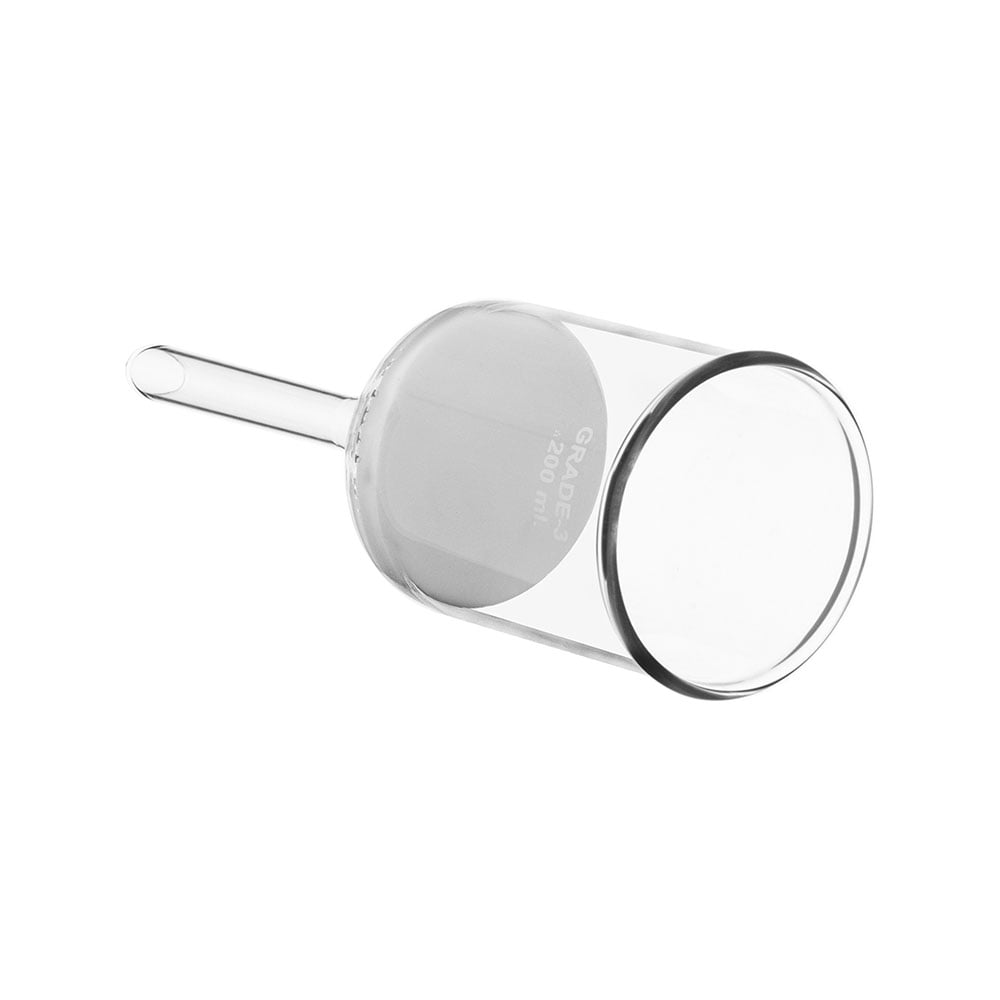

Buchner Funnel With Sintered Disc

Product Code	Size	Disc Diameter	Porosity	Box Packing
005.203.01	35 ml	30 mm	0	02 Pcs
005.203.01	35 ml	30 mm	1	02 Pcs
005.203.01	35 ml	30 mm	2	02 Pcs
005.203.01	35 ml	30 mm	3	02 Pcs
005.203.01	35 ml	30 mm	4	02 Pcs
005.203.01	35 ml	30 mm	5	02 Pcs
005.203.02	80 ml	40 mm	0	02 Pcs
005.203.02	80 ml	40 mm	1	02 Pcs
005.203.02	80 ml	40 mm	2	02 Pcs
005.203.02	80 ml	40 mm	3	02 Pcs
005.203.02	80 ml	40 mm	4	02 Pcs
005.203.02	80 ml	40 mm	5	02 Pcs
005.203.02A	125 ml	55 mm	0	02 Pcs
005.203.02A	125 ml	55 mm	1	02 Pcs
005.203.02A	125 ml	55 mm	2	02 Pcs
005.203.02A	125 ml	55 mm	3	02 Pcs
005.203.02A	125 ml	55 mm	4	02 Pcs
005.203.02A	125 ml	55 mm	5	02 Pcs
005.203.03	200 ml	65 mm	0	02 Pcs
005.203.03	200 ml	65 mm	1	02 Pcs
005.203.03	200 ml	65 mm	2	02 Pcs
005.203.03	200 ml	65 mm	3	02 Pcs
005.203.03	200 ml	65 mm	4	02 Pcs
005.203.04	500 ml	90 mm	0	02 Pcs
005.203.04	500 ml	90 mm	1	02 Pcs
005.203.04	500 ml	90 mm	2	02 Pcs
005.203.04	500 ml	90 mm	3	02 Pcs
005.203.04	500 ml	90 mm	4	02 Pcs
005.203.04	500 ml	90 mm	5	02 Pcs
009.203.05	3000 ml	150 mm	3	01 Pc

Buchner Funnel With Sintered Disc And Cone

Product Code	Size	Disc Diameter	Cone size	Porosity	Box Packing
006.203.06	125 ml	55 mm	19/26	3	02 Pcs
006.203.06	125 ml	55 mm	24/29	3	02 Pcs
006.203.06	125 ml	55 mm	29/32	3	02 Pcs
006.203.04	500 ml	95 mm	24/29	3	02 Pcs

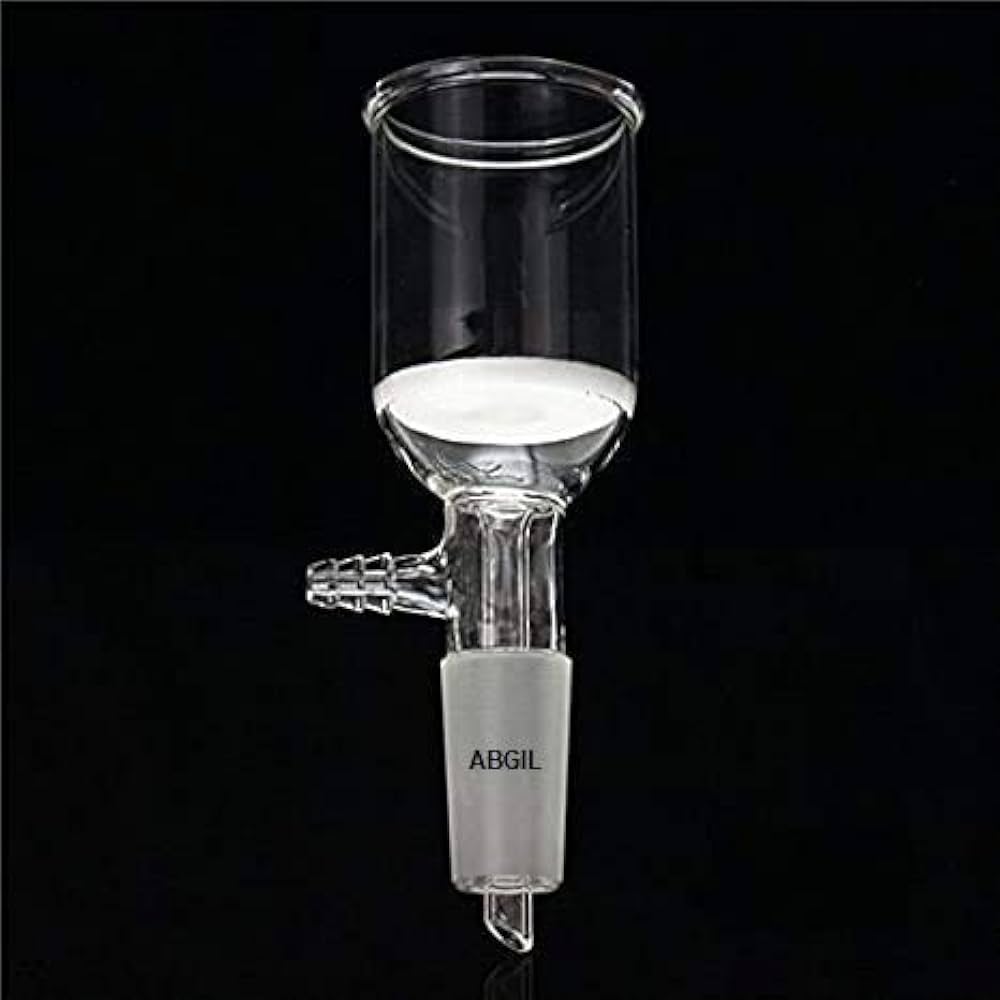

Buchner Funnel With Cone And Vaccum Connection

Product Code	Size	Disc Diameter	Cone size	Porosity	Box Packing
025.203.01	30 ml	30 mm	19/26	3	02 Pcs
025.203.01	30 ml	30 mm	19/26	4	02 Pcs
025.203.02	80 ml	40 mm	24/29	1	02 Pcs
025.203.02	80 ml	40 mm	24/29	2	02 Pcs
025.203.02	80 ml	40 mm	24/29	3	02 Pcs
025.203.02	80 ml	40 mm	24/29	4	02 Pcs
025.203.03	125 ml	55 mm	24/29	1	02 Pcs
025.203.03	125 ml	55 mm	24/29	2	02 Pcs
025.203.03	125 ml	55 mm	24/29	3	02 Pcs
025.203.03	125 ml	55 mm	29/32	2	02 Pcs
025.203.04	500 ml	90 mm	29/32	3	02 Pcs
025.203.04	500 ml	90 mm	24/29	3	02 Pcs

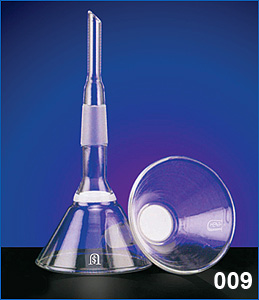

Glass Funnel With SIntered Discs

Product Code	Size	Disc Diameter	Porosity	Box Packing
009.203.01	20 ml	65 mm	2	02 Pcs
009.203.01	20 ml	65 mm	3	02 Pcs
009.203.01	20 ml	65 mm	4	02 Pcs
009.203.02	30 ml	80 mm	3	02 Pcs

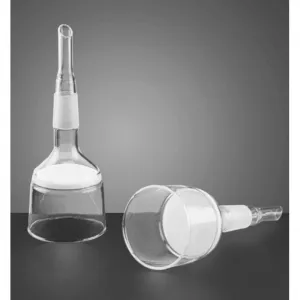

Glass Funnel WIth Sintered Discs And Stem with Cone

Product Code	Size	Disc Diameter	Cone Size	Porosity	Box Packing
028.203.01	45 mm	20 mm	19/26	3	02 Pcs
028.203.02	80 mm	30 mm	19/26	3	02 Pcs
