Porcelain Ware Image

Porcelain Ware

High-quality porcelain crucibles and combustion tubes designed for laboratory use. Our porcelain ware is glazed for durability and chemical resistance, making it ideal for high-temperature applications and chemical analysis.

Specifications

Material: High-grade porcelain
Surface: Glazed for chemical resistance
Applications: Laboratory analysis, high-temperature processes
Varieties: Low wall, high wall, and specialized crucibles

Porcelain Medium Wall Crucibles With Lid

Product Code	Capacity (ml)	Rim Diam (mm)	Bottom Diam (mm)	Height (mm)
C-21	25	40	23	36
C-22	30	42	24	41
C-23	40	48	26	42
C-24	50	53	30	46
C-24-1	70	58	32	54
C-25	100	63	34	59
C-26	150	70	39	63
C-27	200	82	41	70
C-28	300	90	43	78
C-29	400	100	45	100

Perforated Crucibles, with Lid and Disc, Glazed

Product Code	Capacity (ml)	Rim Diam (mm)	Bottom Diam (mm)	Height (mm)
C-34	25	38	23	40
C-35	30	40	25	46

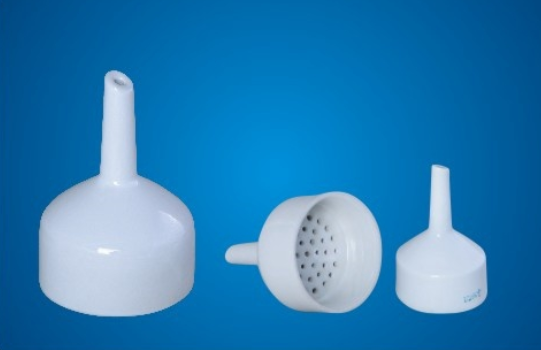

Funnels with Perforated Filter Disc, Glazed

Product Code	Capacity (ml)	Inside Diam (mm)	Tube Diam (mm)	Total Height (mm)	Perforations No.
C-141	10	20	8	40	19
C-142	20	30	10	60	19
C-143	30	40	12	70	19
C-144	50	50	14	95	19
C-145	120	70	20	120	37
C-146	200	90	24	140	61
C-147	400	110	28	170	91
C-148	600	125	32	190	127
C-149	1000	150	38	210	127
C-150	1300	180	46	240	169
C-151	1500	200	50	260	169
C-152	5000	250	56	300	217
C-152-1	6500	300	68	350	271

Pipeclay Triangle

Product Code	Size (mm)
C-195	50
C-196	60
C-197	70

Combustion Boats, Unglazed

Product Code	Length (mm)	Rim Width (mm)	Bottom Width (mm)	Height (mm)
C-94	60	10	6	8
C-95	72	11	6	9
C-96	77	12	7	9
C-97	88	13	8	10
C-98	95	15	9	10
C-99	97	17	10	11

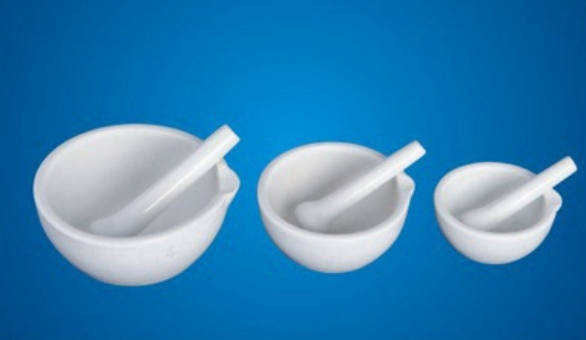

Mortars with Spout, Pestles, Glazed

Product Code	Rim Diam (mm)	Bottom Diam (mm)	Height (mm)	Head Diam (mm)	Length (mm)
C-154	60	32	32	18	65
C-154-1	80	44	41	26	90
C-155	100	60	45	27	110
C-156	130	80	62	32	125
C-157	160	90	74	39	155
C-158	216	114	90	46	200
C-158-1	254	130	110	62	230
C-158-2	305	160	140	70	260
C-158-3	356	180	150	75	310

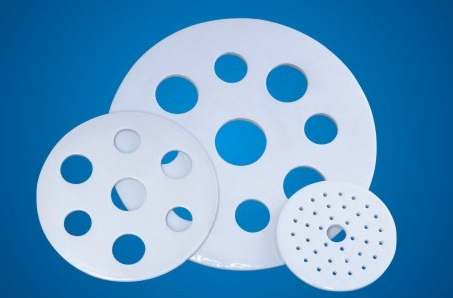

Desiccator Discs, Glazed

Product Code	Diameter (mm)	Center Hole Diam (mm)	Large Hole Diam (mm)	Small Hole Diam (mm)
C-271	120	33	30	27
C-272	130	33	30	27
C-273	140	33	30	27
C-274	150	33	30	27
C-275	160	33	30	27
C-276	170	33	30	27
C-277	180	33	30	27
C-278	200	36	33	28
C-279	210	36	33	28
C-280	220	36	33	28
C-281	225	36	33	28
C-282	230	36	33	28
C-283	240	36	33	28
C-284	250	36	33	28
C-285	265	45	39	33
C-286	270	45	39	33
C-287	275	45	39	33
C-288	280	45	39	33
C-289	285	45	39	33

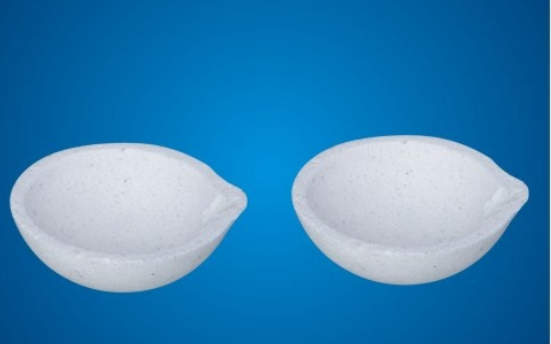

Smelting Gold Basin

Product Code	Capacity (kg)	D (mm)	B (mm)	H (mm)
C-460	0.05	52	4.5	18
C-461	0.1	57	5	19
C-462	0.15	61	5	19
C-463	0.25	82	5.5	31
C-464	0.5	100	7	35
C-465	1	115	7	35
C-466	2	135	7	50
C-467	2.5	140	9	70
C-468	5	180	12	80

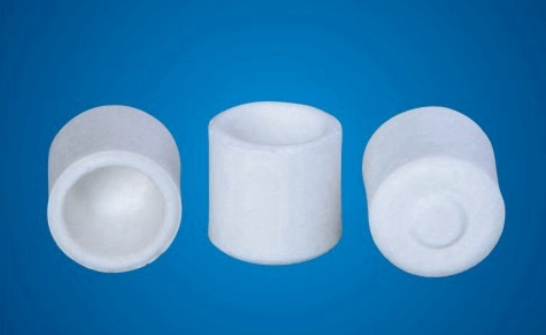

Crucible for High Frequency Furnace

Product Code	Outside Diam (mm)	Inside Diam (mm)	Height (mm)
C-206	23.5	17	25.5
C-207	25.5	19.5	26.5

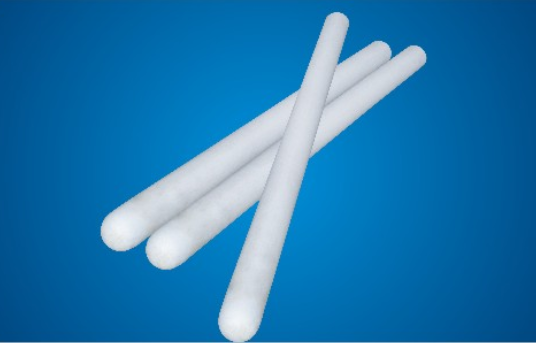

Combustion Tubes, Unglazed

Product Code	Outside Diam (mm)	Inside Diam (mm)	Length (mm)
C-103	10	7	300-500
C-104	15	10	300-500
C-105	20	16	300-1000
C-106	21	17	300-1000
C-107	25	20	300-1000
C-108	27	23	300-1000
C-109	30	25	300-1000
C-110	36	32	300-1000
C-111	40	36	300-1000
C-112	50	42	300-1000
C-113	60	52	300-1000
C-114	70	60	300-1000
